Milling Machines

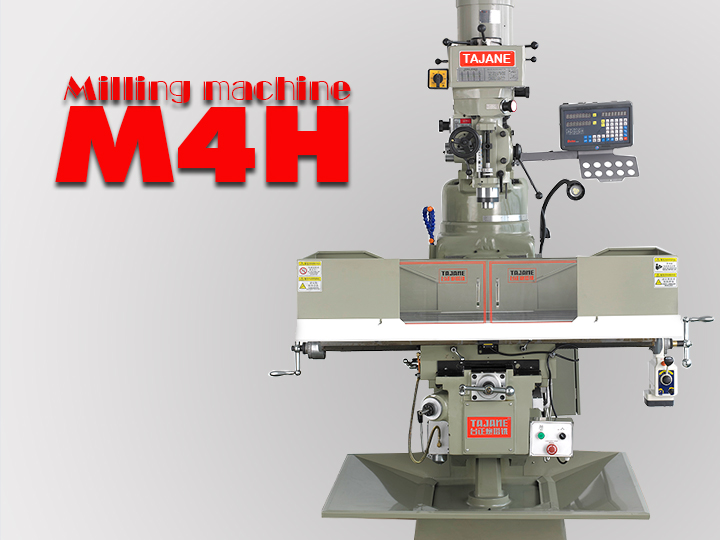

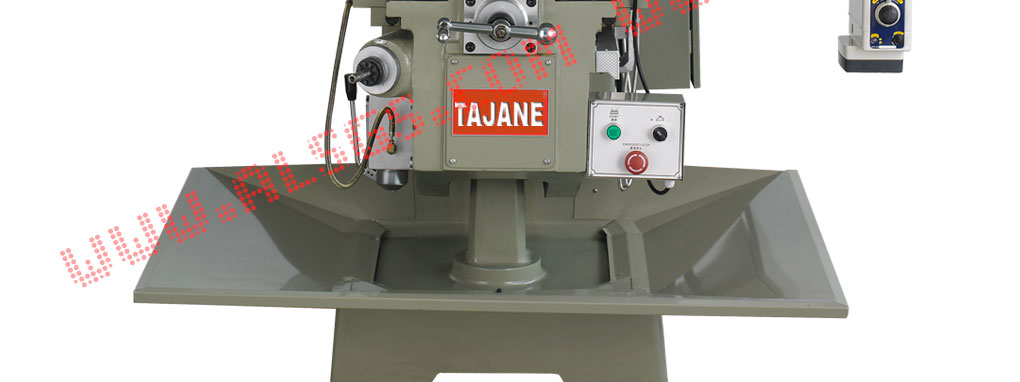

Vertical Milling machine
| 名称Project name | Model M4H | Model M5H |
| 工作台面积Table area | 1270 X 254 mm | 1372x305mm |
|
纵向行程（左右X方向） Longitudinal travel (left and right X direction) |
775-810mm | 900mm |
|
横向行程（前后Y方向） Transverse stroke (front and rear Y direction) |
360mm | 420mm |
|
垂向行程（上下Z方向） Vertical stroke (upper and lower Z direction) |
360mm | 360mm |
|
工作台载重 Table load |
300KG | 400KG |
|
主轴端面到工作台距离 Spindle end face to worktable distance |
470mm | 500mm |
|
主电机功率 Main motor power |
3HP | 5HP |
|
电压 Voltage |
三相380v(或220V/415V/440v） | 三相380v(或220V/415V/440v） |
|
频率 Frequency |
50/60Hz | 50/60Hz |
|
主轴锥孔 Taper hole of spindle |
R8 or NT30 | NT40主轴 |
|
主轴级速 Spindle stage speed |
16 | 16 |
|
低速 Low speed（rpm） |
80/135/210/325/660/1110/1750/2720 | 80/135/210/325/660/1110/1750/2720 |
|
高速 High speed（rpm） |
160/270/420/650/1320/2220/3500/5440 | 160/270/420/650/1320/2220/3500/5440 |
|
主轴行程 Travel of spindle |
120mm | 120mm |
|
套筒 Jacket |
85.725mm | 105mm |
|
T型槽 T-groove |
16x3x65mm | 16x3x65mm |
|
滑枕伸出臂 Sliding pillow outstretched arm |
520mm | 520mm |
|
机床外形尺寸 Machine tool shape dimension |
1650/1650/1900mm | 1800/1750/2000mm |
|
重量 Weight |
1450KG | 1700KG |
| Milling machine Model M4H | ||
| Machine tool accessories | Standard configuration | Optional configuration |
| Spring chuck | R8 Machine tool chuck 12 piece suit |
NT30 Machine tool chuck R8 Machine tool chuck （According to the type of machine spindle） |
| Precision flat pliers | 6 inches Opening Vice |
3 inches Opening Vice 4 inches Opening Vice 5inches Opening Vice 6 inches Opening Vice 7/.5 inches Opening Vice 8 inches Opening Vice |
| Combined pressing plate | M12 58 piece suit |
M12 36 piece suit M12 42 piece suit M12 58 piece suit |

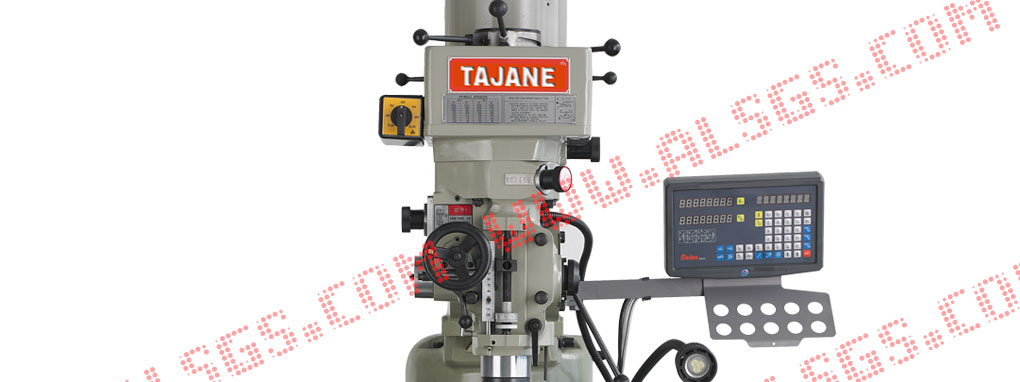

| Grating ruler |
X Grating ruler Y Grating ruler Two axis digital display meter |
X Grating ruler Y Grating ruler Z Grating ruler Three axis digital display meter |
|
Power feed ，table feed (Cannot select two types at the same time) |
Electronic tool power feed in x axis |
Electronic tool power feed in X axis Electronic tool power feed in Y axis Electronic tool power feed in Z axis |
| Mechanical power feed in x axis |
Mechanical power feed in X axis Mechanical power feed in Y axis |
|
| Drill chuck | 0.5-16mm | There are no optional items |
|

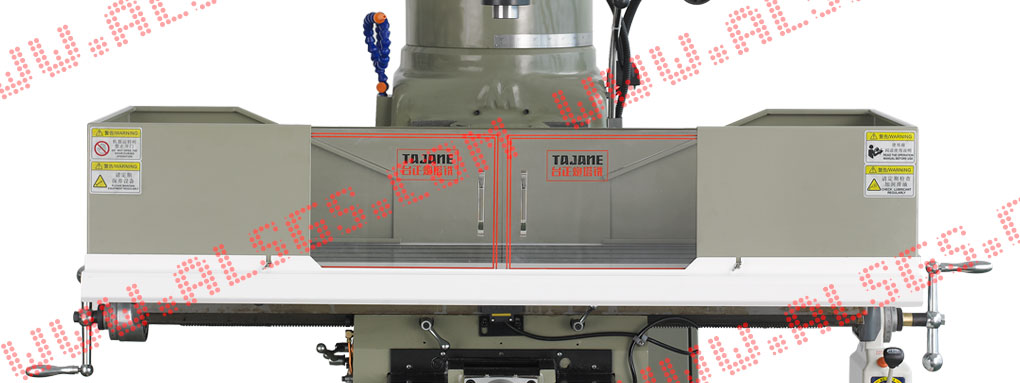

Chip guard Protective cover |
It has been installed on the workbench | |
| Adjusting pad iron | 4 pad irons, & 4 adjusting screws | |
| Cooling water pump | Water pump,Water pipe,Water baffle | |
