Milling Machines
CNC Milling machine

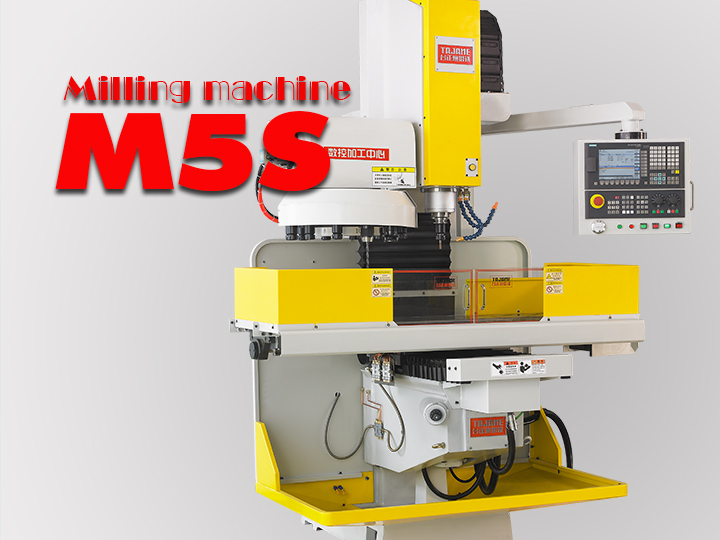

| M5S CNC milling machine | |
| 工作台尺寸Bed dimension | 1473 x 320mm |
| 工作台行程（X轴）X axis of worktable stroke | 950mm / 980mm(MAX） |
| 滑鞍行程（Y轴）Sliding saddle stroke (Y axis) | 380mm / 400mm(MAX） |
| 主轴箱行程（Z轴）Spindle box stroke (Z axis) | 430mm |
| 升降台手动行程Elevator manual stroke | 380mm |
| 工作台承重Table load bearing |
280KG（Full stroke） 350KG(Middle of workbench400mm） |
| T型槽尺寸T-slot size | 3 x 16 x 75mm |
| 主轴principal axis | BT40- ∅120 |
| 主轴转速main shaft speed | 8000rpm |
| 主轴机功率Spindle power | 5.5KW |
| 电压voltage | 380V |
| 频率Frequency | 50/60 |
| 定位精度/重复定位精度Positioning accuracy/Repeatable | Middle of workbench400mm 400mm：0.009mm/±0.003mm |
| 定位精度/重复定位精度Positioning accuracy/Repeatable | Full stroke 950mm：0.02mm/300mm：0.009mm |

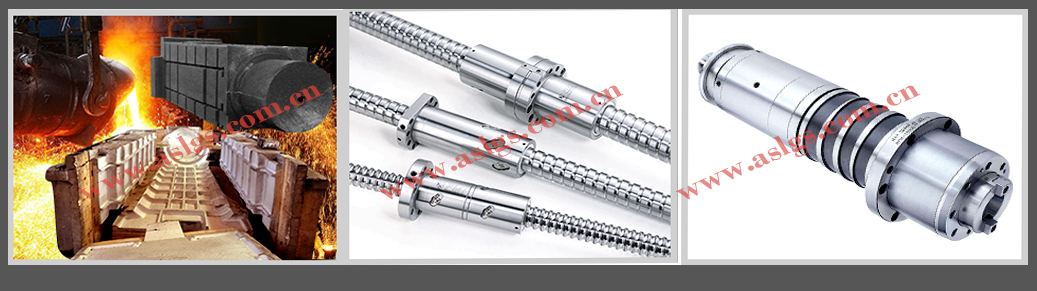

| 滚珠丝杆型号X/Y轴Ball wire rod type X shaft | 3208/3208/3205 Ball linear orbit |
| 线轨X/Y/Z轴Rail X axis | 35/35/30 Ball linear orbit |
| 进给电机功率Feed motor power | X/Y：7Nm Z：15Nm |
| 最快移动速度Moving speed | X/Y：12m/min / Z：18m/m |

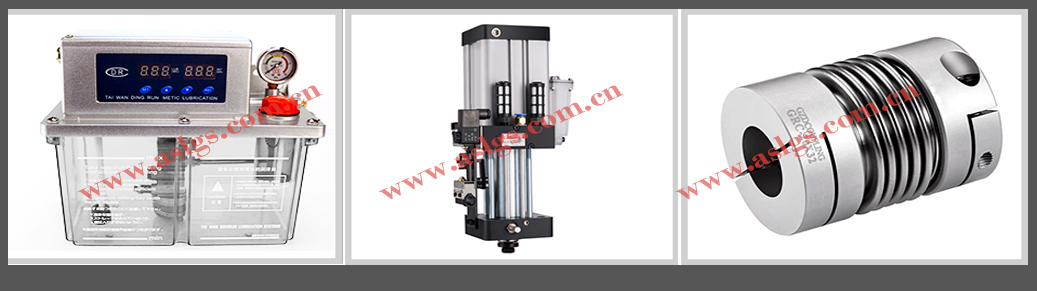

| 联轴器clutch | NBK |
| 打刀缸Knife cylinder | Hangcheng |
| 刀库tool magazine | 8 Hat type tool magazine |

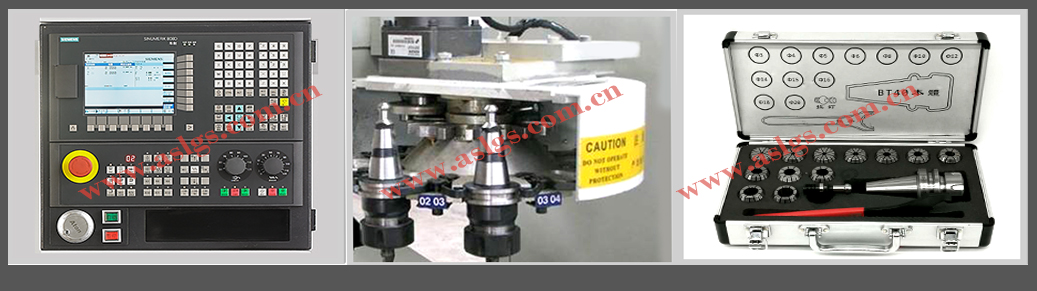

| 系统system | Siemens, Germany 808D |
| 机床外型尺寸Machine tool shape dimension | 2000x1920x2500mm |
| 重量weight | 2600kg |
